PRODUCT DESCRIPTION:

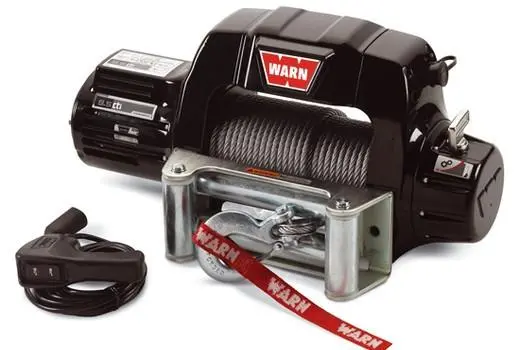

Contactor equipped, thermometric winch
The 9.5cti is the newest addition to the WARN Ultimate Performance winch lineup. A massive protective structure combined with sophisticated operator feedback delivers fast line speeds, and long duty cycles. The perfect winch for the serious off-roader.
- New contactor control features exceptional durability, extra long life, and superior weather sealing
- Motor-mounted thermal sensor relays temperature information to winch operator by way of the hand-held remote control with LED indicator
- Includes both corded and wireless winch controls
- Series-wound motor and 3-stage planetary geartrain deliver 9,500 lbs. of pulling capacity
- Extreme-duty winch sealing system
- High gloss, chip-resistant black powder coat finish over a massive cast-aluminum alloy housing
- Comes with steel, hook, remote control on 12′ (3.7m) lead, and roller fairlead
| 12V DC PERFORMANCE SPECS | |||
| Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 62 (18.9) | 47 amps | 1/9500 (4313) |
| 2000 (910) | 16.3 (4.97) | 160 amps | 2/8650 (3927) |
| 4000 (1810) | 11.8 (3.60) | 230 amps | 3/7920 (3595) |
| 6000 (2720) | 9.31 (2.84) | 305 amps | 4/7400 (3359) |
| 8000 (3630) | 7.59 (2.31) | 370 amps | 5/6940 (3150) |
| 9500 (4310) | 6.67 (2.03) | 425 amps | |
| Rated line pull: 9,500 lbs., (4310 kgs) single-line |
| Motor: Series wound |
| Electrical controls: Contactor |
| Remote Controls: Remote switch, LED indicator, 12′ (3.7m) lead and hand-held wireless |
| Geartrain: 3-Stage planetary |
| Gear ratio: 156:1 |
| Clutch (freespooling): Sliding ring gear |
| Brake: Automatic direct drive cone |
| Drum diameter/Length: 2.5″/9.0″ (6.4 cm/23 cm) |
| Weight: 89 lbs. (36.3 kgs) |
| Rope: Steel – 125′, 5/16″ diameter |
| Fairlead: roller |
| Recommended battery: 650 CCA |
| Battery leads: 2 gauge, 72″ (1.83m) |
| Finish: High-gloss powder coat over primer undercoating |
