Description
PRODUCT DESCRIPTION:

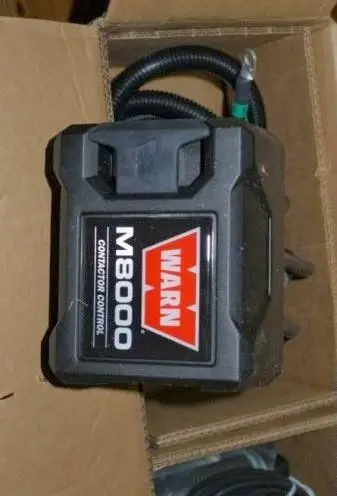

The M8000 winch has been trusted by off-roaders for over twenty years. This 8,000 lb. capacity winch offers outstanding reliability and value. Its low-profile design allows for a variety of mounting options, making it perfect for most trucks, Jeeps and SUVs.
- Premium Series winch that delivers classic design, proven performance, and legendary WARN reliability
- New, next generation electrical control box and hand-held remote control
- Low-profile design and separate control box allows for a wide range of mounting options
- Exclusive brake design provides superior control while winching
- Durable 3-stage planetary geartrain for smooth, reliable, operation
- Series-wound, high-speed motor provides fast line speed and strong
- pulls
- Chip-resistant powder-coated finish
- 100′ of steel or synthetic rope
| 12V DC PERFORMANCE SPECS | |||
| Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 42(12.8) | 80 amps | 1/8000(3629) |
| 2000(910) | 16(4.88) | 200 amps | 2/7280(3302) |
| 4000(1810) | 11.9(3.63) | 285 amps | 3/6670(3026) |
| 6000(2720) | 9.79(2.98) | 350 amps | 4/6230(2826) |
| 8000(3630) | 8.01(2.44) | 435 amps | |
| Rated line pull: 8,000 lbs., (3630 kgs.) single-line |
| Motor: Series Wound, 12V 4.8 hp, 24V 2.1 hp, |
| Electrical controls: Contactor |
| Remote Control: Remote switch, 12′ (3.7m) lead |
| Geartrain: 3-Stage Planetary |
| Gear ratio: 216:1 |
| Clutch (freespooling): Sliding ring gear |
| Brake: Automatic direct drive cone |
| Drum diameter/Length: 2.5″/9.0″ (6.4cm/23cm) |
| Weight: 74 lbs. (34 kgs) |
| Rope: Steel — 100′, 5/16″ diam. |
| Fairlead: Roller |
| Recommended Battery: 650 CCA minimum for winching |
| Battery leads: 2 gauge, 72″ (1.83m) |
| Finish: Argent gray powder coat |
Weight 37.5kg
